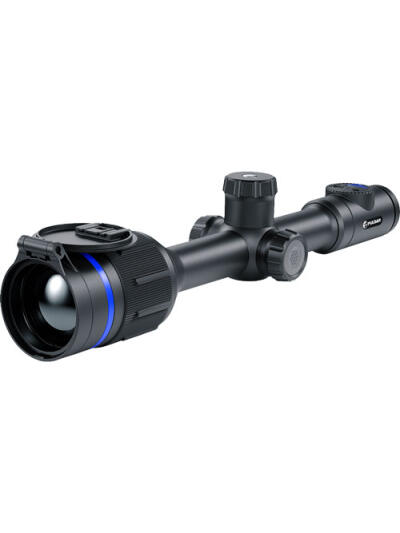

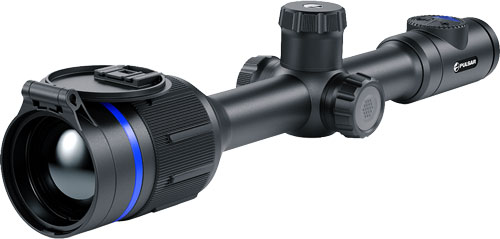

Main – Sensor 384×288 pix. @ 17 µm (NETD <25 mK) – Objective lens F50 F/1.0 – Magnification x 3-12 – Field of view (HxV) degrees / m@100m 7.5/13.1 – Detection range m 1800 – Sensor – Type uncooled – Resolution pixels 384×288 – Pixel pitch µm 17 – NETD mK <25 – Frame rate Hz 50 – Optics – Objective lens F50 F/1.0 – Magnification x 3-12 – Field of view (HxV) degrees / m @ 100 m 7.5/13.1 – Eye relief mm 50 – Display – Type AMOLED – Resolution pixels 1024×768 -Range Performance – Detection range m 1800 – Reticle – Click value H/V mm at 100 m 13-3x 6.5-6x 3.25-12x – Click range H/V mm at 100 m 2600/2600 – Number of preloaded reticles 10 – Video Recorder – Video / photo resolution pixel – 1024X768 – Video / photo format .mp4 / .jpg – Built-in memory GB 16 – Wi-Fi – Wireless Protocol Wi-Fi – Wireless Standard 802.11 b/g/n/ac – Frequency GHz 2.4 / 5 GHz – Environmental Characteristics – Degree of protection IP code (IEC60529) IPX7 – Operating temperature range °C -25-+50 – Connections and Compatibilities – Max. recoil power on rifled weapon (Eo) Joules 6000 – Shock resistance on the smooth-bore rifles caliber 12 – Compatible mounts Standard 30 mm rings – Supported Application Stream Vision 2 – Power Supply – Output voltage V 3.0-4.2 – Battery type Li-Ion Battery Pack APS2 (external) Li-Ion Battery Pack APS3 (external)-sold separately* Li-Ion Battery Pack APS5 (internal) – Capacity mAh 2000 (external) + 3200 (external)* + 4900 (internal) – Operating time on battery pack (at t=22°C) h * 10 – External power supply V 5 V 9 V (USB Type-C Power Delivery) – Weight & Size – Body material Metal – Dimensions mm 412x78x83 – Weight kg 0.9
