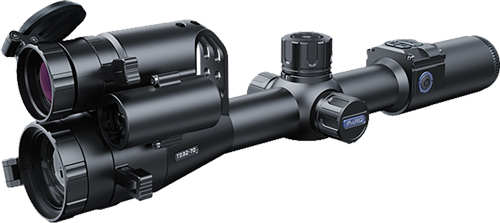

Model TD32 – IR Sensor – Type Uncooled Vox IR Sensor – Resolution(px) 384*288 – Pixel Size(µm) 12*12 – NETD(mK) 25mK 0.025 – Frame rate(Hz) 50 – Human detection distance(m) 1400 – Vehicle detection distance(m) 2600 – Image Engine Pard IREA – Objective lens(mm) 35 – Optical Magnification(x) 3 – Digital zoom(x) 2 – Continuous digital zoom 3-6 – Field of view (HxV) – Horizontal 5.7° – Vertical 5.7° – Diagonal 8° – Focus range 3m-infinity – Visible Light Sensor – Type CMOS Sensor – Resolution(px) 1920*1080 – Pixel size(um) 2.9 – Sensitivity(lux) 0.001 – Frame rate(fps) 30 – Image Engine PARD VLEA – Objective lens(mm) 70 – Optical Magnification(x) 6.5 – Digital zoom(x) 2 – Continuous digital zoom 6.5-13 – Field of view (HxV) – Horizontal 2.6º – Vertical 2.6º – Diagonal 3.6º – Image Engine Pard VLEA – Focus range 3m-infinity – Display – Type IPS LCD – Resolution(px) 800*800 – Reticle Style 6 – Reticle Color 4(Red/White/Yellow/Green) – Scene Mode City/Rain/Forest – Image mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY – Eye relief(mm) 100 – Diopter adjustment(D) -5D-+3D – Photo / Video – Photo resolution(px) 2592*1944 – Photo format .JPG – Video resolution(px) Thermal: 1024*768/Night Vision: 1440*1080 – Video format .mp4 – Storage(GB) TF card(128 GB)(Max) – Main function – LRF detection range(yds) 1200 – Ballistic calculator Yes – PIP Yes – Gyroscope Yes – Self-motivated recording Yes – Loop recording Yes – Red dot Yes – E-compass Yes – Shutter Mechanical shutter – Microphone Yes – Firmware Upgrade Yes – IR Illuminator – IR Type VCSEL – IR power 5W – IR illuminating level 3 Levels – IR distance(m) 350 – IR Wavelength(nm) 850/940 – Interfaces – USB Tpye-C Yes – HDMI Output Yes – Connections – WiFi Yes – Supported Apps PardVision – Power Supply – Battery type Lithium Ion 21700*1 – Output voltage(V) 3.7 – Operating time(h) ?6 – External power supply(V) Type-C – Environmental characteristic – Degree of protection IP67 – Operating temp(°C) -20-50 – Recoil Power(J)/shcok resistance(J) 6000 – Material – Housing Aluminum Alloy – Objective lens All-glass multi-coated lens – Measurement – Product dimension(L x W x H mm) 350*91*95 – N.W/pcs(with/without battery g) 800g(w/o battery) 845g(w/ battery)
